LID-FC
Laser Investigator & Designer
Nonlinear frequency conversion of laser radiation (ver.2.2).
SRI of Bauman Moscow State Technical University jointly with RDI POLYUS
Main applications
LID-FC - is the HandBook-Calculation Set of the applied programs for solution the professional (investigation and design) and education tasks.
Program set is intended for solution three problems of nonlinear frequency conversion of laser radiation:
1. Selection of Nonlinear Crystals from First parameters DataBase for application tasks,
2. Computation of phase-matching conditions, tuning curves, anlular, spectral and temperature widths, nonlinear coefficients, walk-off angles, orientation of eigen polarizations, and etc.
3. Solution of frequency conversion tasks.
Program Set LID-FC is based on General DataBase of First Parameters of Crystals, which consist of sistematized parameters on 87 crystals (18 physical parameters). All parameters contain bibliografy references.
Directions of applications: - SHG, THG, SFG, DFG, OPA, OPO, and etc.

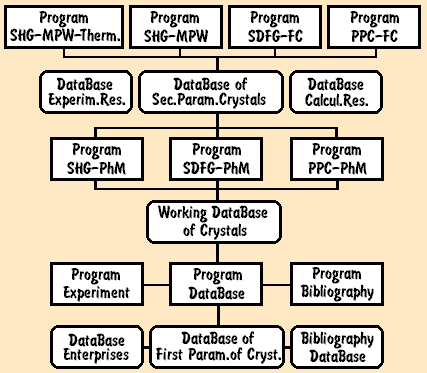

Structure of Program Set LID-FC
Program Set LID-FC contains 11 coupled computation programs:
Requirements to computer:
- CPU:from 486DX-100, best result - Pentium 2500 or higher,
- RAM: not less 600 KB,
- HD: not less 10 MB,
- Is recommended: 1MB EMM or EMS,
- Opearation System: MS DOS 3.0 or higher, DR DOS, Windows 3.x, Windows 95, Windows NT, OS/2, Free BSD, Mac OS.
New versions of DataBase for LID-FC Program Set:
|
